Bodet-Campanaire
TOWER CLOCKS AND CHURCH EQUIPMENTS

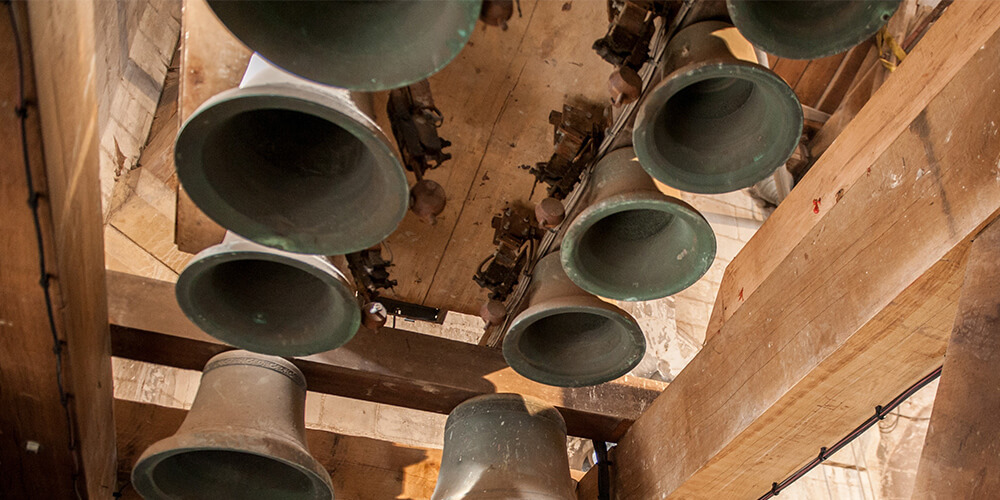

Ringing systems for bells

They set the rhythm of life in your cities and villages!

With unrivalled know-how for over 150 years, Bodet Campanaire has electrified many bells. With a complete and secure solution, Bodet Campanaire offers you various systems for ringing your bells.

BELL AUTOMATIONOUR REFERENCES

The advantages of the electromagnetic hammer

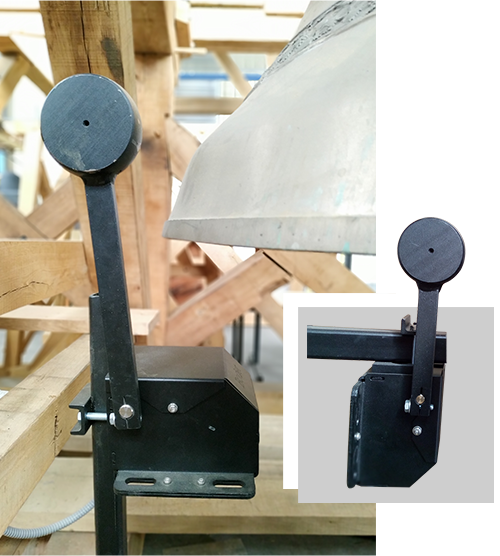

Electromagnetic hammers

The advantages of the electromagnetic hammer

  • Used to strike a bell that is static
  • Its function is to toll the hours, the angelus, knell, tocsin…
  • Control by a BTE 1 or OPUS Master Clock
  • Its power is proportional to its size and to the size of the bell

Main features

  • To prevent damaging the bell the hammer head is made of mild steel
  • The tropicalized coil which triggers the strike is varnished under vacuum
  • 230 V AC single phase supply
The advantages of the electromagnetic hammers for carillons

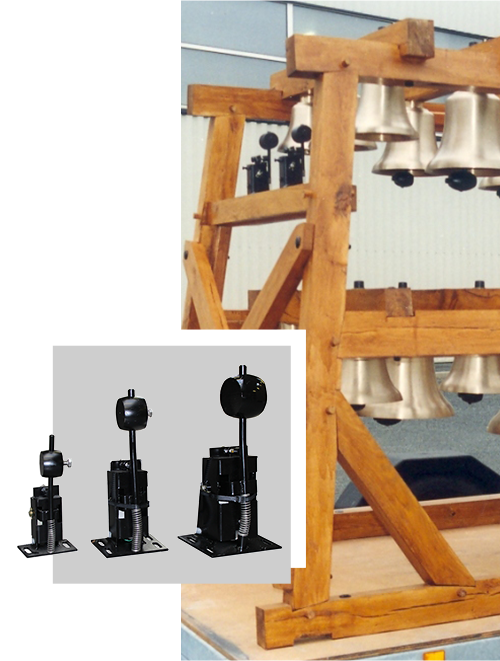

Electromagnetic hammers for carillons

The advantages of the electromagnetic hammers for carillons

  • Used to strike a bell that is static
  • Its function is to toll the hours, the angelus, knell, tocsin… It has a very fast response time and is particularly adapted to the electric carillons
  • Controlled by an OPUS Master Clock
  • Its power is proportional to its size and to the size of the bell

Main features

  • To prevent damaging the bell the hammer head is made of mild steel
  • The tropicalized coil which triggers the strike is varnished under vacuum
  • Zinc covered an black painted cover
  • Stainless steel return springs
The advantages of our electric hammer

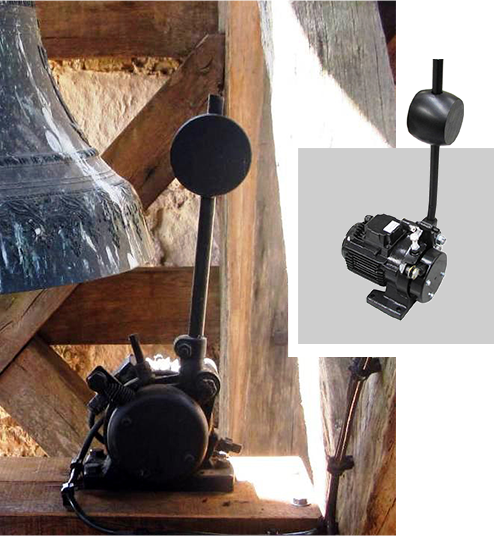

Electric Hammer

The advantages of our electric hammer (tolling motor)

  • Used to toll the hours, angelus, knell, tocsin and carillons on big bells up to 5000kg
  • Its striking is more powerful than the electromagnetic hammer
  • Driven by an OPUS Master clock

Main features

  • Dust and rain proof housing: IP54
  • Maximum striking rate: 1 strike/sec
  • Operating temperature range: -30°C to 50°C
  • Power supply: 230V / 400 V 3-phase
The advantages of the mechanical hammer activator

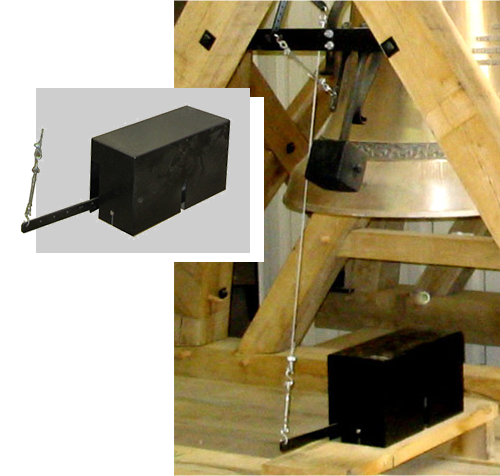

Mechanical hammer activator

The advantages of the mechanical hammer activator (dropped strike motor)

  • Strikes by dropping a mechanical hammer
  • Old bell ringing method

Main features

  • Aluminium cover, black finish paint
  • Exists in 60W and 250W 230V single phase version, 40V and 250W 400V 3-phases
  • Gear-motor 30rpm output speed
The advantages of our electronic peal motor

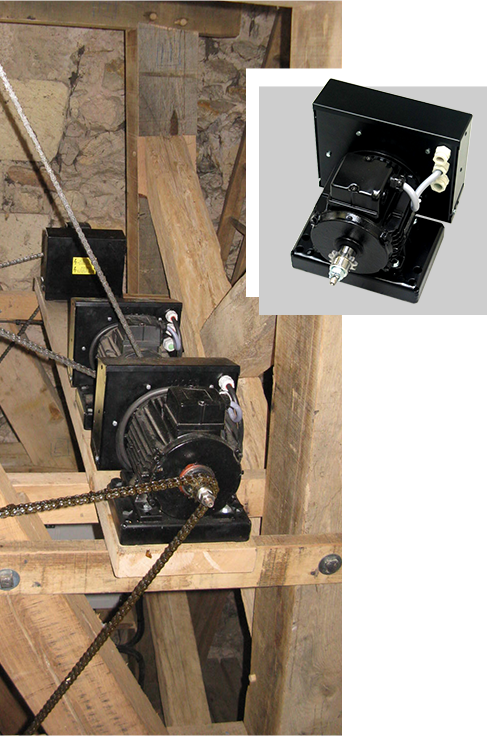

Electronic peal motor

The advantages of our electronic peal motor:

  • Provides the sound quality of a manual bell ringing
  • Controls the swinging movement of the bell in its starting and breaking phases
  • Protects the bell from violent hits
  • Safety system which prevent any swing amplitude overshooting
  • Electronic peal motor can be set with a dedicated tool

Main features

  • Dust and rain proof motor: IP54
  • Complies with the NF C15-100 standard
  • Treated against corrosion
  • Operating temperature range: -30°C to 50°C
  • Weight of the motor: from 10 to 15 kg
  • Options: simple, double or alkan toll
  • Aluminium base and cover
  • 11 teeth gear (or aluminium toothed pulley for swinging the bell with a toothed belt)
